Straight Cell and Slant Cell Ventilation Panel

​

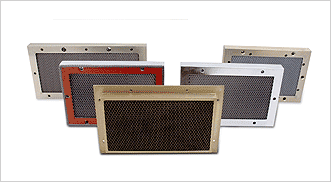

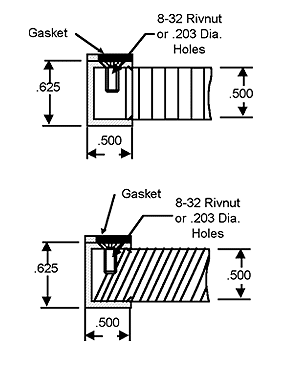

Straight Cell Ventilation Panel is an EMI shielded air filter. Extruded aluminum profiles surround aluminum honeycomb and are welded in place for structural support. Aluminum honeycomb in various cell size and thickness is secured into the channel. Multi Gasket, a combination of neoprene sponge and monel mesh or Wire-Knit is installed on the panel. Hole locations are customized for easy surface mount installation with standard 8-32 rivnuts or .203 diameter holes. Plating options enhance shielding effectiveness.

* Straight Cell Ventilation Panel available in brass and steel.
* Straight Cell design available in 15, 30, 45 & 60° slanted honeycomb for the control of air flow direction.


















































​

​

Material Specification:

• Frame: Aluminum Alloy 6063-T4 per ASTM -B221

• Core Material: Aluminum Honeycomb Alloy per AMS-C-7438

Gasket Material:
Multi-Gasket
• Neoprene Sponge ASTM-D-6576
• Silicone Solid Grey or Orange A-A-59588
• Silicone Sponge per AMS-3195

• Conductive Gasket per MIL-G-83528

Wire-Knit
• Aluminum Wire per AMS-4182 / 5056 Alloy .005 wire diameter
• Monel Wire per QQ-N-281 .0045 wire diameter
• Sn/Cu/Fe per ASTM-B-520 .0045 wire diameter

Finish Options:
• Chromate Coating MIL-DTL-5541 Type I or Type II, Class 1 or Class 3 (Gold or Clear)
• Tin Plating ASTM-B-545 Class C
• Electroless Nickel AMS-C-26074 or AMS-2404 Class 1
• Cadmium AMS-QQ-P-416

​

​

​

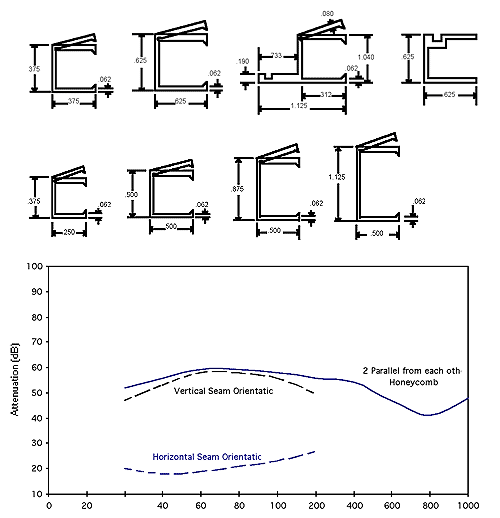

Frame Designs













































































                     ----  Straight cell, single layer of 1/8 cell X ½ thick Shielding Effectiveness
                      __  Double stack cell, dual layer of 1/8 cell X ¼ thick Shielding Effectiveness
