Brass & Steel Vent Panels

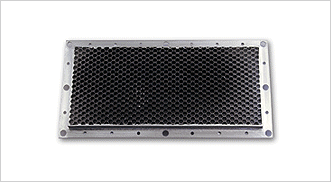

Brass and steel honeycomb vent panels are recommended when structural integrity, H-Field shielding effectiveness, harsh environmental conditions and durability are primary concerns. Brass or steel extrusions are customized to surround brass or steel honeycomb and welded in place. Continuous flow soldering provides enhanced contact between the honeycomb and frame improving integrity. Multi-Gasket, a combination of neoprene sponge and monel mesh fit, most applications although Wire-Knit or conductive gaskets are available. Standard through holes and spacing for surface mounting installation is customized. Vents without gasketing can be welded in place. Brass vents are typically finished with tin lead plating. Steel vents are commonly finished with tin plating. Other plating options available. Ideal for mobile military transportation, communication shelters or equipment where EMP or TEMPEST is required.

​

​

*Brass alloy is most corrosion resistant.
*Available in ATI Circular Vent and ATI 90° Cell Vent design.

​

​

​

​

​

​

​

​

​

​

​

​

​

Brass Material Specifications:

• Frame: Brass Alloy 260 per ASTM-B-36B 36M

• Core Material: Brass Honeycomb Alloy 260 per ASTM-B-36B 36M

Gasket:
Multi-Gasket
• Neoprene Sponge ASTM-D-6576
• Silicone Solid Grey or Orange A-A-59588
• Silicone Sponge per AMS-3195

• Conductive Gasket per MIL-G-83528

Wire-Knit
• Aluminum Wire per AMS-4182 / 5056 Alloy .005 wire diameter
• Monel Wire per QQ-N-281 .0045 wire diameter
• Sn/Cu/Fe per ASTM-B-520 .0045 wire diameter

Finish Options:

• Tin Lead 90/10 per AMS-P-81728
• Tin Plating ASTM-B-545 Class C
• Electroless Nickel AMS-C-26074 or AMS-2404 Class 1
• Cadmium AMS-QQ-P-416


Steel Material Specifications:

• Frame: SAE 1010 Steel

• Core Material: SAE 1010 Soldered Steel Honeycomb



Gasket:
Multi-Gasket
• Neoprene Sponge ASTM-D-6576
• Silicone Solid Grey or Orange A-A-59588
• Silicone Sponge per AMS-3195

• Conductive Gasket per MIL-G-83528

Wire-Knit
• Aluminum Wire per AMS-4182 / 5056 Alloy .005 wire diameter
• Monel Wire per QQ-N-281 .0045 wire diameter
• Sn/Cu/Fe per ASTM-B-520 .0045 wire diameter

Finish Options:
• Tin Plating ASTM-B-545 Class C
• Tin Lead 90/10 per AMS-P-81728
• Electroless Nickel AMS-C-26074 or AMS-2404, CLASS 1
• Cadmium AMS-QQ-P-416

​

*Available in Circular Vent and ATI 90° Cell Vent design.

Frame Designs

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

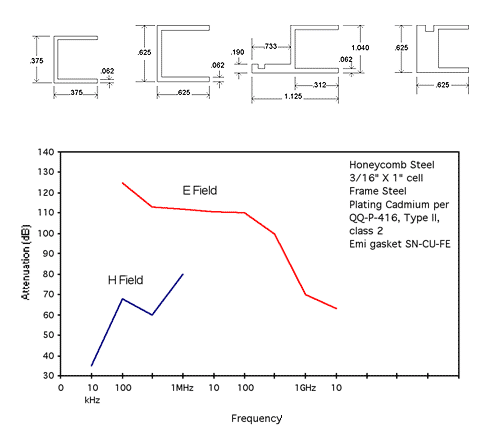

                                   Steel Vent Shielding Effectiveness
