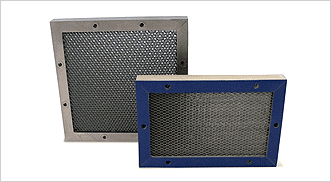

Double Stack Vent Panel

​

Double Stack Ventilation panel is a high level EMI shielded air filter with superior performance. Extruded aluminum profiles surround dual layers of ¼-inch honeycomb and welded in place. Both honeycomb layers are positioned 90 degrees to each other, optimizing shielding effectiveness and minimizing the polarization characteristics of straight aluminum honeycomb. Multi Gasket, a combination of neoprene sponge and monel mesh or Wire-Knit, is installed on the panel. Hole locations are customized for easy surface mount installation with standard 8-32 rivnuts or .203 diameter holes. Plating options enhance shielding effectiveness.

​

*Double Stack is available in 15°, 30°, 45° & 60° slanted honeycomb which may increase air flow resistance.
*Double Stack available in Round Vent design.





























Material Specifications:

• Frame: Aluminum Alloy 6063-T4 per ASTM-B221

• Core Material: Aluminum Honeycomb Alloy per AMS-C-7438

Gasket:
Multi-Gasket
• Neoprene Sponge ASTM-D-6576
• Silicone Solid Grey or Orange A-A-59588
• Silicone Sponge per AMS-3195

• Conductive Gasket per MIL-G-83528

Wire-Knit
• Aluminum Wire per AMS-4182 / 5056 Alloy .005 wire diameter
• Monel Wire per QQ-N-281 .0045 wire diameter
• SN/CU/FE per ASTM-B-520 .0045 wire diameter

Finish Options:
• Chromate Coating MIL-DTL-5541 Type I or Type II, Class 1 or Class 3 (Gold or Clear)
• Tin Plating ASTM B 545 Class C
• Electroless Nickel AMS-C-26074 or AMS-2404 Class 1
• Cadmium AMS-QQ-P-416

​

​

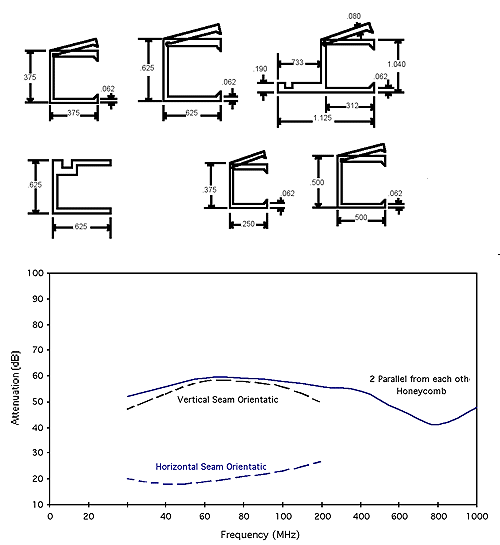

Frame Designs































































​

​

​

​

​

​

​

                 __   Double stack cell, dual layer of 1/8 cell X ¼ thick Shielding Effectiveness
                 ----   90 cell, single layer of 1/8 cell X ½ thick Shielding Effectiveness
