Slender Filter

​

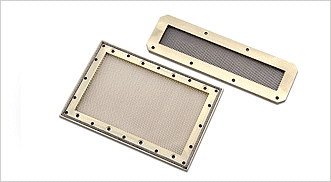

Slender Filter is the thinnest profile EMI shielded air filter. Extruded aluminum surrounds a singular thin piece of expanded monel or aluminum metal screen and welded in place. Wire-Knit or conductive gasket increase shielding effectiveness. Through hole locations are customized for easy surface mount installation. Plating options enhance shielding effectiveness. Slender Filters are frequently placed at intake and exhaust areas and are best utilized where narrow space limitations are a requirement.































Material Specifications:

• Frame: Aluminum per ASTM-B221, 6063-T4 Alloy

• Core Material: Expanded Monel per QQ-N-281or Expanded Aluminum per QQ-A-250/2 3003

Gasket:
Wire-Knit
• Aluminum Wire per AMS-4182 / 5056 Alloy .005 wire diameter
• Monel Wire Alloy per QQ-N-281 .0045 wire diameter
• Sn/Cu/Fe per ASTM-B-520 .0045 wire diameter

• Conductive Gasket per MIL-G-83528

Finish Options:

• Chromate Coating MIL-DTL-5541 Type I or Type II, Class 1 or Class 3 (Gold or Clear)
• Tin Plating ASTM B 545 Class C
• Electroless Nickel AMS-C-26074 or AMS-2404 Class 1
• Cadmium AMS-QQ-P-416

​

​

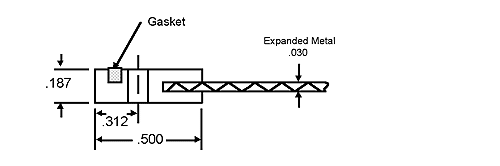

Frame Designs

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

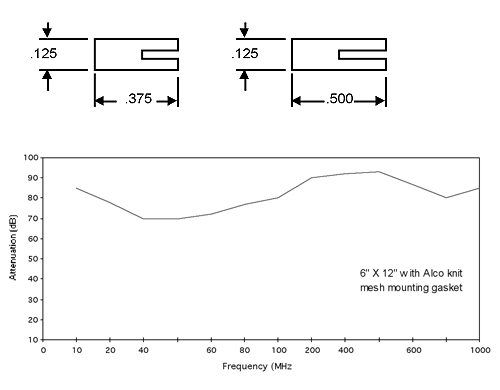

                                                Slender Filter Shielding Effectiveness
